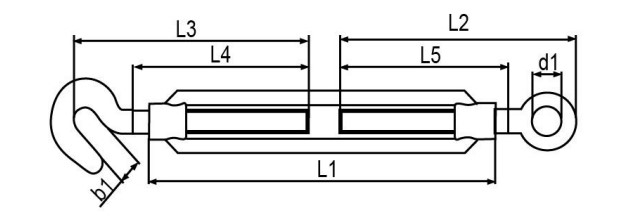

| SIZE | W.L.L | L1 | L2 | L3 | L4 | L5 | b1 | d1 | Wt per 100 pcs |
| N | MM | MM | MM | MM | MM | MM | MM | KG | |
| M6 | 2250 | 110 | 74 | 77 | 50 | 50 | 8 | 10 | 9 |
| M8 | 4100 | 110 | 80 | 98 | 60 | 52 | 10 | 11 | 15 |
| M10 | 6500 | 125 | 95 | 116.5 | 73 | 59 | 12.5 | 15 | 26 |
| M12 | 9300 | 125 | 107 | 146 | 90 | 66 | 16 | 17 | 40 |
| M16 | 17700 | 170 | 146 | 165 | 100 | 85 | 16 | 22 | 95 |
| M20 | 27000 | 200 | 170 | 180 | 105 | 100 | 18 | 24 | 164 |
| M22 | 32000 | 220 | 203 | 215 | 120 | 123 | 23 | 30 | 231 |
| M24 | 39200 | 255 | 213 | 225 | 135 | 134 | 30 | 33 | 285 |
| M30 | 62500 | 255 | 255 | 225 | 140 | 150 | 30 | 37 | 411 |
| M36 | 91000 | 295 | 260 | 300 | 170 | 150 | 32 | 39 | 745 |
